- Custom Trim Specified Per Customer

STANDING SEAM ROOF TRIMS

Buck-I Metals manufactures standing seam metal roof and wall panel trims to suit your building’s needs. Our trim products include angles, channels, drip cap, flashing and more.

Trims

SS Z-Trim (solid & vented

Diagram of a metal bracket with 1.5-inch base and 1-inch vertical section

SS Rake

Technical drawing of a metal bracket with five dimensions labeled, including 1 inch at the top, 1.25 inches on the left, 4.25 inches vertically, 0.5 inch on the inner bend, and 0.625 inch near the bottom bend.

Diagram of a stepped line with measurements 1 inch, 0.75 inches, and 2.25 inches labeled.

SS Offset Cleat

SS Ridge Cap

wire hanger with dimensions labeled, including 7 or 9 inches on each side and 1 inch at each end

V-shaped metal bracket with two inward bends, each measuring 1.5 inches.

SS Valley

SS Endwall Flashing

technical drawing of L-shaped object with measurements 4 inches, 5 inches, and 1 inch

SS Sidewall

Diagram of a metal angle with dimensions, including 3.563 inches vertical, 2 inches horizontal, 1.25 inches downward extension, and a 0.5-inch lip.

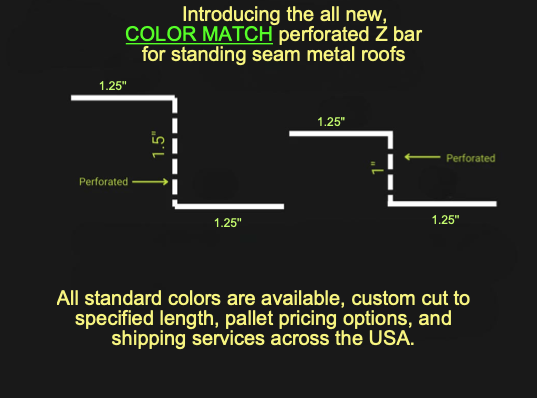

What Is Z Bar?

Z Bar is used when metal trim needs to be attached to the top of a standing seam panel. The Z Bar provides the trim with something to attach to and creates a fixed point of contact. It's used most frequently at the ridge, peak, transition, and endwall.
